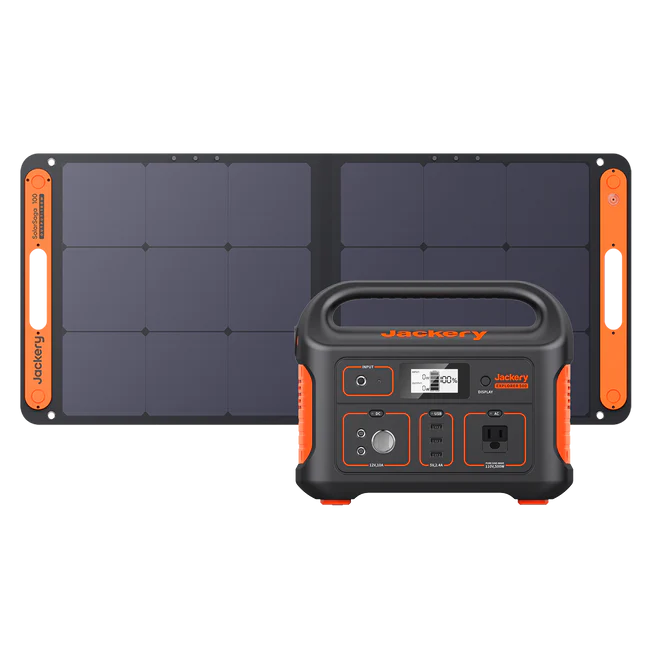

Jackery Solar Generator 500
- 518Wh Capacity, 500W Inverter (1000W Surge)
- 7 Outputs for Outdoor Devices
- 3 Ways to Recharge
- Safe, Clean and Quiet Solar Generator
- Compact and Lightweight
- Waterproof, Foldable & Portable Solar Panels
- Explorer 500: 2-year warranty
- Solar Saga 100W: 2-year warranty
- What's In The Box? -
- Explorer 500
- AC Adapter
- Car Charger Cable
- Solar Saga 100W
NOTICE
* This product (portable power supply) can supply power to your device in the temperature range of -10 to 40 degrees Celsius (-10 to 65 degrees Celsius for solar panels). If the operating temperature is outside the above range, this product may not work.
Power Station Specs
General
- Weight: 13.3 lbs (6 kg)
- Dimensions: 11.8 x 7.6 x 9.5 in / 30 x 19.2 x 24.2 cm
- Charge Temperature: 32~104 °F (0~40°C)
- Discharge Temperature: 14℉~104℉(-10°C~40°C)
Battery
- Capacity: 24Ah/21.6V (518.4 Wh)
- Cell Chemistry: Lithium-ion
- Cycle Life: 800 cycles to 80%+ capacity
Output Ports
- AC Output: 110V~ 60Hz, 4.54A
- AC Total Output: 500W max continuous, 1000W surge peak
- DC Output: (2x) 12V⎓7A
- USB-A Output: (3x) 5V⎓2.4A (Total 30W max)
- Car Port: 12V⎓10A
Input Ports
- DC Input: 12-15V⎓7A; 15-30V⎓3.75A
Charging Time
- AC Adapter: 7.5 Hours
- Car Adapter: 7.5 Hours
Solar Saga 100W Specs
General
- Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)
- Protection Class Against Electric Shock: Class II
- Waterproof: IP68
- Operating Temperature Range: -4~149 ℉（-20℃~65℃）
- Warranty: 3 Years

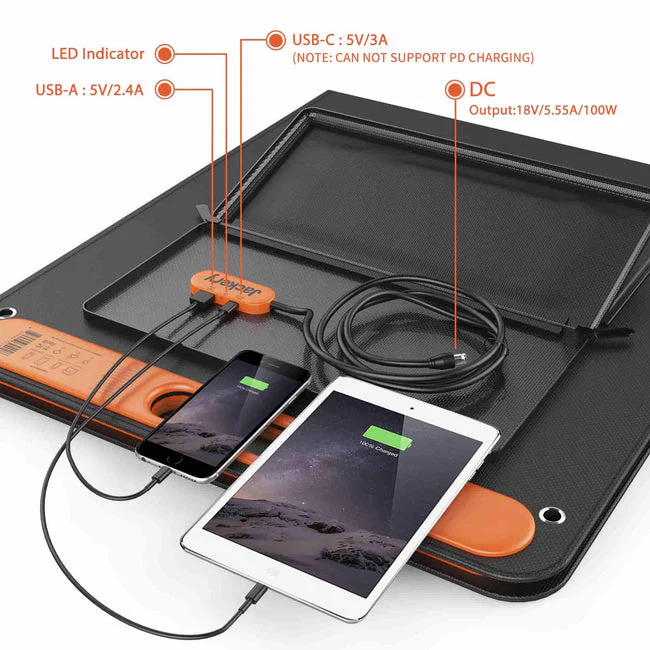

Ports
- USB-A Output: 5V⎓2.4A
- USB-C Output: 5V⎓3A
Solar
- Maximum System Voltage: 60V
- Maximum Reverse Current: 15A
- Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%
- Voltage Temperature Coefficient: -0.268%/°C
- Power Temperature Coefficient: -0.29%/°C
STC (1000W/㎡, 25℃, AM 1.5)
- Peak Power (Pmax): 100W±5W
- Open Circuit Voltage (VOC): 24.8V±5%
- Short Circuit Current (Isc): 5.4A±5%
- Power Voltage (Vmp): 20.0V±5%
- Power Current (Imp): 5.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
- Peak Power (Pmax): 104W±5W
- Open Circuit Voltage (Voc): 25V±5%
- Short Circuit Current (Isc): 5.8A±5%
- Power Voltage (Vmp): 20.1V±5%
- Power Current (Imp): 5.2A±5%
Dimensions
- Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)
- Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)
